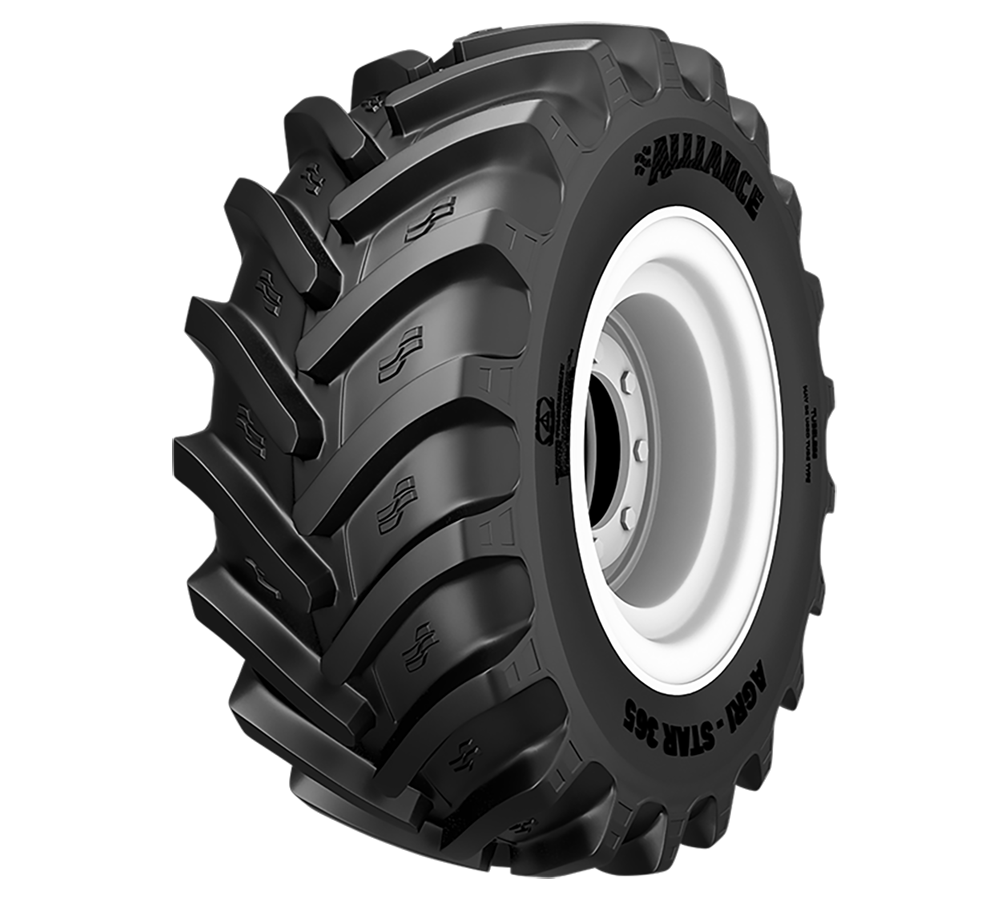

540/65R38 ALLIANCE 365 AGRI-STAR 153D R-1W TL

Description

The Alliance 365 range of 65 series (70 series with 710 section width sizes) agricultural tyres have been designed for use with high horse-powered tractors working in a number of agricultural applications including harvesting and tillage operations. The tyre's large volume allows for increased loads at low inflation pressures helping to reduce ground pressure and protect valuable soils. A larger footprint offers increased traction abilities and an optimal number of lugs on the open centre R-1W tread pattern offers good self-cleaning capability. Increased roadability and high-speed capability of up to 65 km/h (dependent upon the load) helps to increase productivity and a strong radial casing further extends the tyre's durability and lifecycle.

Features

  • Modern 65 series radial design for high-powered tractors working in harvesting and tillage operations.
  • High load-bearing at low pressures offers increased soil protection.
  • Good traction and self-cleaning properties.
  • Good roadability and high-speed capability across the range.

Specification

Sector
AGRICULTURAL
Application
TRACTOR RADIAL
Range
TRACTOR RADIAL 65 SERIES
Size
540/65R38
Brand
ALLIANCE
Pattern
365 AGRI-STAR
Load/Speed Index
153D
TT/TL
TL
Construction
RADIAL
Nominal Section Width
540
Profile
65
Rim
38
TRA
R-1W
Recommended Rim
16
Permitted Rim
18
Section Width
535 mm
Overall Diameter
1675 mm
Static Load Radius
778 mm
Rolling Circumference
4989 mm
Tread Depth
48.00 mm
Max Load (KG)/Speed (KM/H) 1
3650/65
Inflation Pressure Bar
2.40
ECE 106
Yes
Warranty
7 YEARS
